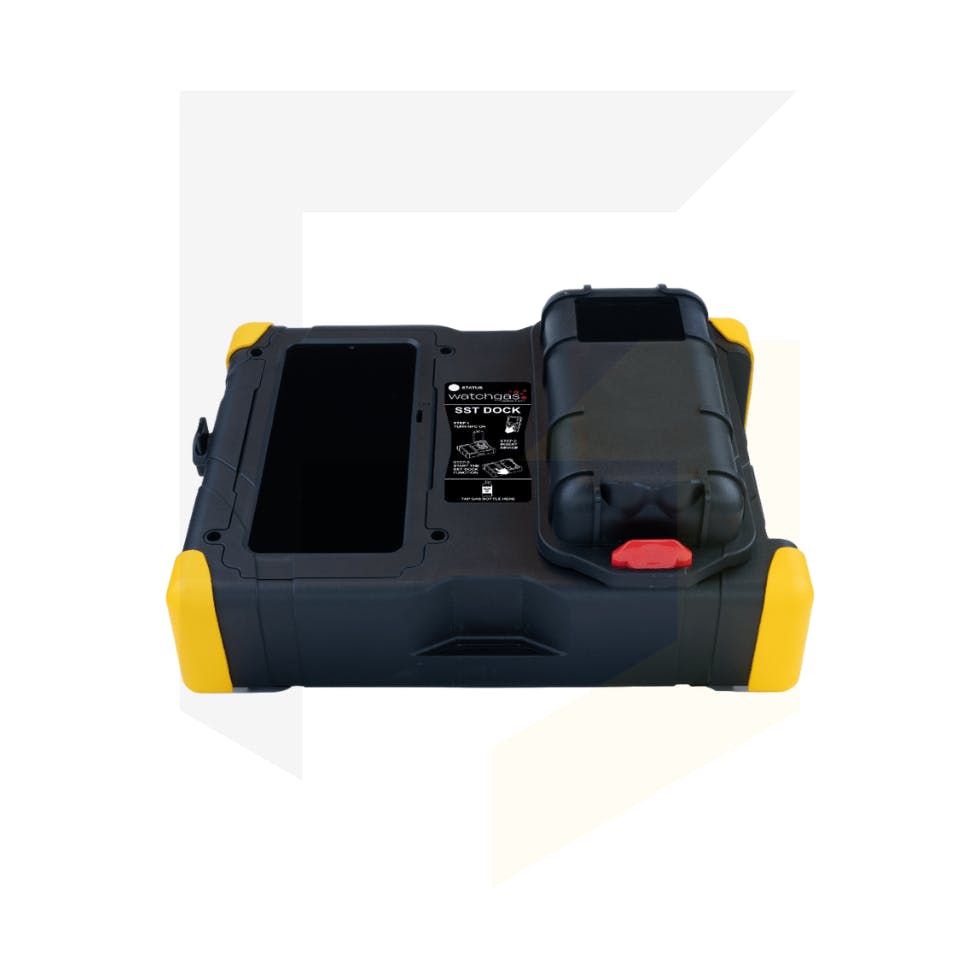

WatchGas SST-Dock Automated Test Station
WatchGas’s SST-Dock is an automated bump and calibration test station for the SST gas detector range, including the SST1, SST4, SST5 and the SST-Pump.
The SST-Dock is intuitive and easy to set up and use. Gas cylinders can be assigned using the NFC (Near Field Communication) reader and will input the span values, lot numbers and expiry dates directly into the docking station. This can all be viewed on the large touch screen display. Everything you need should be able to be done within this screen, there is no need for a PC connection to make product changes.
WatchGas have designed the SST-Dock with the customer in mind and offers a rapid bump feature to save costs. This allows for three levels of bump testing (50, 70 and 90% levels of gas), to bump your gas detector in seconds. All results are saved on the dock and should you wish to report these then they can be shared via mail or in the WatchGas software via Wifi, BLE or cellular data (SIM card).
By using one of WatchGas’s approved regulators, you will be warned when gas is running low or coming to its expiry date. This allows you to proactively manage any downtime and ensure that your daily operations are not affected.
- Comes with brackets if wall-mounting is preferable
- Can be used on desktop or for mobile use with addition of hard case
- 100 calibrations can be done on the use of one battery charge
- One docking station can bump, test and configure an entire fleet of monitors
- Software is cloud-based and allows you to view your fleet
- Notifies any non-compliance, expiries, gas alarms or low gas
- Tests device Alarms, Visual LED’s and offers data download
Dimensions (LxWxH) |
28 x 21 x 10 cm (11 x 8.2 x 4 in.) |
Weight |
1.8 kg (63.5 oz.) |
Temperature |
+5-40 °C |
Humidity |
0% to 90% RH |
Storage Temperature |
0-50 °C |
Power Supply |
12 V 1,5 A |
Real Time Clock |
Yes, updateable |
Data Storage |
More than 1 year of operation |
Gas inlets |
Fresh air inlet, 2 Gas inlets and one |
Certifications & Approvals  |
·        EMC Directive 2014/30/EU ·        Low Voltage Directive 2014/35/EU ·        FCC Part 15 ·        RoHS Directive 2011/65/EU |
Warranty |
2 years |
