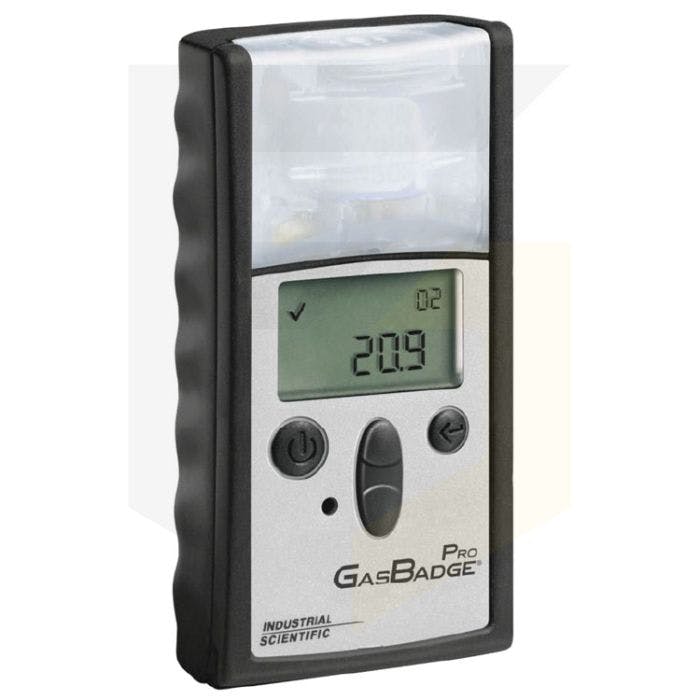

Industrial Scientific Gasbadge Pro Single-Gas Monitor (Diffusion)

Industrial Scientific Single-Gas Monitor that can detect a wide range of single gases

PRODUCT CODE:: IS-GASBADGE-D

The GasBadge pro is a single-gas monitor designed to provide a lifetime of gas protection. With a wide variety of interchangeable sensors to choose from and a Guaranteed for Life warranty, the GasBadge can be adapted for the users’ changing needs and application types. The monitor is also compatible with iNet, the DSX Docking Station and GasBadge Data Link.

Subscribe to back in stock notification

I have read & accept the Privacy Policy

£489.00

inc VAT

Product description

Industrial Scientific Gasbadge Pro Single-Gas Monitor (Diffusion)

The Industrial Scientific Gas Badge Pro is a serviceable, single-gas monitor that can be configured to various gases, including; 02, H2S, SO2, CO, CO/H2 low, NO2, NH3, CI2, CLO2, PH, HCN, H2.

The GasBadge Pro is Industrial Scientific's highest quality and reliable monitor out of their range of single gas detectors. The monitor can provide a lifetime of protection as it comes equipped with interchangeable sensors to alter what gas it detects and is covered by the Guaranteed for Life Warranty. It also has a rugged and water-resistant exterior that makes it ideal for a range of severe industrial environments.

Although the GasBadge Pro is a very rugged monitor, it is user friendly and features a custom LED screen featuring icons for easy use, a segmented display for gas readings and go/no go display mode. It also has four-button function navigation making it user friendly for set-up, calibration and operational functions.

Key Features

One year data logging capacity (minimum)
Outer casing is rugged, water and RFI resistant and concussion-proof.
Standard STEL and TWA readings.
Triple alarm system consists of an ultra-bright LED, a vibrating alarm, and a 95 dB noise alarm that can be personalised to low or high.
Data logging records up to one year of survey data and 15 alarm events that have occurred.
IP64 rating means the monitor is dust-tight from dust and other particles and is protected against water splashes from all directions.

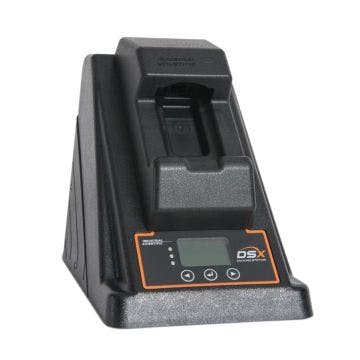

Compatible with the DSXi docking station, Datalink and infrared printer to assist with calibration, pump testing and data tracking.

Specification

SUPPLIED IN BOX	GasBadge Pro Monitor, cal-cup, urethane tubing and a manual.
INSTRUMENT WARRANTY	Guaranteed for Life™ – Instrument is warranted for as long as supported by Industrial Scientific Corporation (excluding sensors, batteries, and filters). CO, H2S, and O2 sensors are warranted for 2 years. All other sensors warranted for 1 year
SENSORS	CO, H2S, O2, NO2, SO2, NH3, CI2, CIO2, PH3, HCN, H2, CO/H2 Low
MEASURING RANGES	CO: 0-1,500 ppm in 1 ppm increments CO/H2 low: 0-1,500 ppm in 1 ppm increments H2S: 0-500 ppm in 0.1 ppm increments O2: 0-30% by vol in 0.1% increments NO2: 0-150 ppm in 0.1 ppm increments SO2: 0-150 ppm in 0.1 ppm increments NH3: 0-500 ppm in 1 ppm increments Cl2: 0-100 ppm in 0.1 ppm increments ClO2: 0-1 ppm in 0.01 ppm increments PH3: 0-10 ppm in 0.01 ppm increments HCN: 0-30 ppm in 0.1 ppm increments H2: 0-2,000 ppm in 1 ppm increments
DIMENSIONS	9.4 x 5.08 x 2.79 mm (3.7 x 2 x 1.1 in )
WEIGHT	85 g (3 oz)
BATTERY RUN TIME	User replaceable 3V, CR2 Lithium battery, 2,600 hour run time, typical
DATA LOGGING	1-year continuous storage of data
EVENT LOGGER	Continually on. Logs last 15 alarm events, stamping how long ago the event occurred, the duration of the event, and the peak reading seen during the event. Event-logger can be viewed on PC or printed directly from the instrument to an infrared printer.
TEMPERATURE RANGE	-40 ºC to 60 ºC (-40 ºF to 140 ºF), typical
HUMIDITY RANGE	0% to 99% RH (non-condensing), typical
CERTIFICATIONS	ANZEx: Ex ia I/IIC T4 ATEX: Ex ia I/Ex ia IIC T4; Equipment Group/Category I M1/II 1G China Ex: Ex ia I/IIC T4 CMA: Ex ia I CSA: Cl I, Gr A-D, T4; Ex ia IIC T4 KC: Ex ia I/IIC T4 IECEx: Ex ia I/IIC T4 INMETRO: Ex ia IIC T4 UL: Cl I, Div 1, Gr A-D, T4; Cl II, Gr E-G
